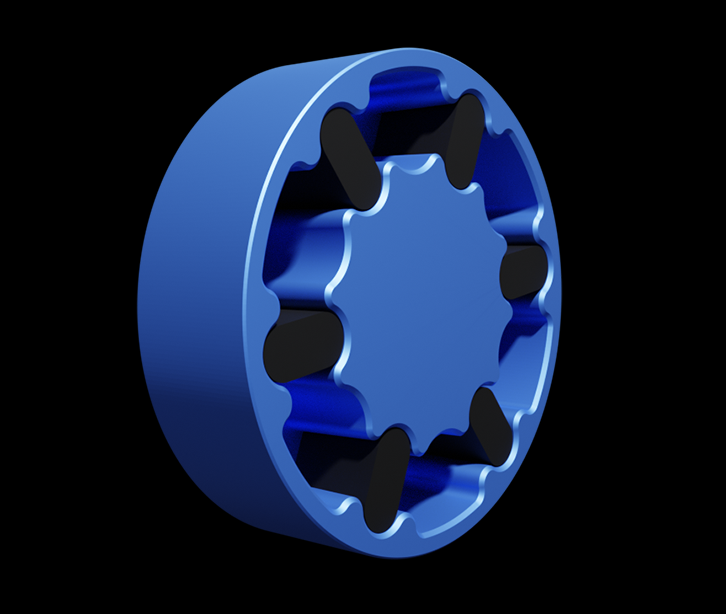

Light Flexible Couplings with Rubber and Polyamide Inserts

21,00 € – 176,00 €

Flexible couplings are essential components for connecting two shafts while accommodating misalignment, reducing vibration, and minimizing wear. Couplings with rubber and polyamide 12 inserts offer excellent flexibility, shock absorption, and durability. These couplings are widely used in machinery, motors, and industrial applications to improve efficiency and extend the lifespan of mechanical systems.

Couplings Guide


Light Pair
No D d1 d2 C1 C2 I1 I2 A1 A2 a1 a2 Weight Rubbers per coupling
1 70 30 41 up to 18 up to 28 30 30 21 6 9 24 ~ 0,95kg RUBB12 – Qnt.= 4
2 80 39 50 up to 22 up to 32 35 36 23 8 12 28 ~ 1,36kg RUBB12 – Qnt.= 4
3 89 56 60 up to 25 up to 38 44 46 30 10 14 36 ~ 2,36kg RUBB34 – Qnt.= 4
4 99 66 70 up to 30 up to 45 50 50 31 10 19 40 ~ 3,37kg RUBB34 – Qnt.= 5
5 119 70 81 from 20 – up to 35 from 20 – up to 50 61 60 32 13 29 47 ~ 5,25kg RUBB5 – Qnt.= 6
6 150 85 94 from 24 – up to 45 from 24 – up to 60 71 69 39 14 32 55 ~ 9,19kg RUBB67 – Qnt.= 6
7 170 91 111 from 30 – up to 50 from 30 – up to 70 82 81 41 17 41 60 ~ 13,46kg RUBB67 – Qnt.= 6
8 210 110 140 from 35 – up to 69 from 35 – up to 100 85 86 44 18 41 68 ~ 21,63kg RUBB8 – Qnt.= 8

Light Female
No D d1 C1 I1 A1 a1 Weight Rubbers per coupling
1 70 30 up to 18 30 21 9 ~ 0,4kg RUBB12 – Qnt.= 4
2 80 39 up to 22 35 23 12 ~ 0,64kg RUBB12 – Qnt.= 4
3 89 56 up to 25 44 30 14 ~ 1,1kg RUBB34 – Qnt.= 4
4 99 66 up to 30 50 31 19 ~ 1,64kg RUBB34 – Qnt.= 5
5 119 70 from 20 – up to 35 61 32 29 ~ 2,32kg RUBB5 – Qnt.= 6
6 150 85 from 24 – up to 45 71 39 32 ~ 4,23kg RUBB67 – Qnt.= 6
7 170 91 from 30 – up to 50 82 41 41 ~ 5,76kg RUBB67 – Qnt.= 6
8 210 110 from 35 – up to 69 85 44 41 ~ 9,23kg RUBB8 – Qnt.= 8

Light Male
No D d2 C2 I2 A2 a2 Weight
1 70 41 up to 28 30 6 24 ~ 0,45kg
2 80 50 up to 32 36 8 28 ~ 0,72kg
3 89 60 up to 38 46 10 36 ~ 1,26kg
4 99 70 up to 45 50 10 40 ~ 1,73kg
5 119 81 from 20 – up to 50 60 13 47 ~ 2,93kg
6 150 94 from 24 – up to 60 69 14 55 ~ 4,96kg
7 170 111 from 30 – up to 70 81 17 60 ~ 7,7kg
8 210 140 from 35 – up to 100 86 18 68 ~ 12,4kg
