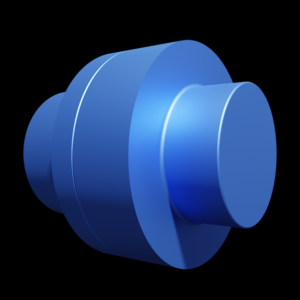

Heavy Super Flexible Couplings with Pins and Rubber Inserts

68,00 € – 1.278,00 €

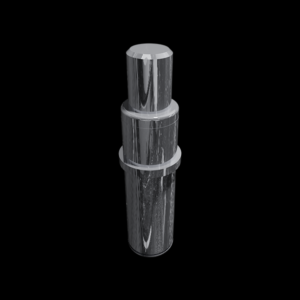

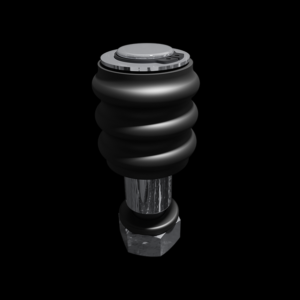

Flexible couplings with pins and rubber inserts are designed for heavy-duty applications where higher torque transmission and shock absorption are required. These couplings use rubber inserts on metal pins to dampen vibrations, reduce noise, and compensate for misalignment. The robust design ensures durability and reliable performance in demanding industrial environments, such as pumps, compressors, and heavy machinery. Their ability to handle greater loads while protecting connected components makes them ideal for high-stress mechanical systems.

Pair/Male/Female

Light-Coupling

Clear

Couplings Guide

Heavy Pair
No	D	d1	d2	C1	C2	I1	I2	A1	A2
1	128	58	63	from 12 – up to 32	from 12 – up to 38	51	50	36	28
2	135	66	70	from 18 – up to 38	from 18 – up to 40	55	55	36	28
3	148	77	84	from 22 – up to 46	from 22 – up to 52	65	65	36	28
4	175	85	97	from 25 – up to 54	from 25 – up to 65	69	71	43	34
5	194	101	113	from 32 – up to 60	from 32 – up to 70	80	81	43	34
6	215	118	130	from 35 – up to 70	from 35 – up to 80	79	79	42	34
7	255	134	145	from 45 – up to 75	from 45 – up to 86	89	89	65	53
8	280	156	167	from 65 – up to 92	from 65 – up to 102	104	105	65	53
9	331	200	210	from 80 – up to 114	from 80 – up to 125	118	119	65	53

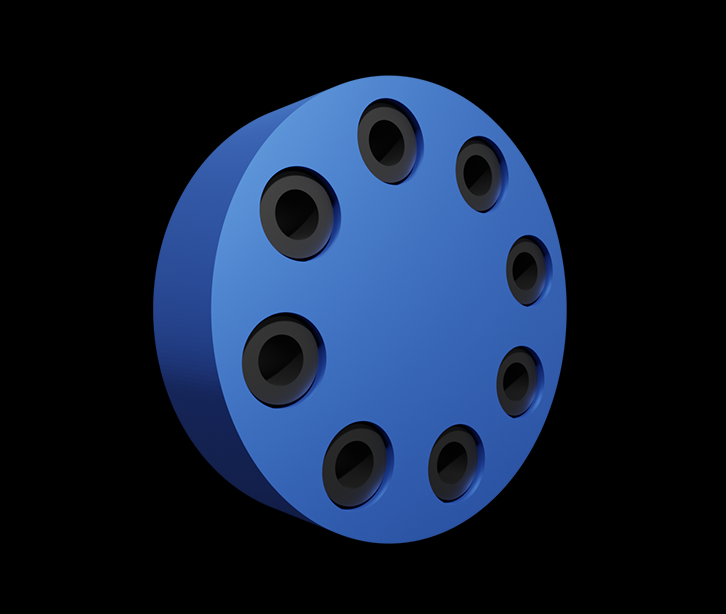

Heavy Female
No	D	d1	C1	I1	A1
1	128	58	from 12 – up to 32	51	36
2	135	66	from 18 – up to 38	55	36
3	148	77	from 22 – up to 46	65	36
4	175	85	from 25 – up to 54	69	43
5	194	101	from 32 – up to 60	80	43
6	215	118	from 35 – up to 70	79	42
7	255	134	from 45 – up to 75	89	65
8	280	156	from 65 – up to 92	104	65
9	331	200	from 80 – up to 114	118	65

Heavy Male
No	D	d2	C2	I2	A2
1	128	63	from 12 – up to 38	50	28
2	135	70	from 18 – up to 40	55	28
3	148	84	from 22 – up to 52	65	28
4	175	97	from 25 – up to 65	71	34
5	194	113	from 32 – up to 70	81	34
6	215	130	from 35 – up to 80	79	34
7	255	145	from 45 – up to 86	89	53
8	280	167	from 65 – up to 102	105	53
9	331	210	from 80 – up to 125	119	53
